The Science Behind Fire Extinguishers: How They Work To Stop Fires

Fire extinguishers are essential safety devices that play a crucial role in protecting lives and property from the destructive power of fire. Their primary purpose is to suppress or extinguish fires before they can cause significant damage or spread uncontrollably. However, understanding how fire extinguishers work is key to using them effectively during an emergency. In this article, we will delve into the science behind fire extinguishers, exploring how they operate, the different types of extinguishers, and the mechanisms they use to stop fires.

The Fire Triangle: Understanding How Fires Start

Before we dive into the science of fire extinguishers, it’s important to first understand how fires start. Fire requires three elements to ignite and continue burning. These elements are commonly referred to as the fire triangle:

1. Heat: A source of heat is required to start a fire. This could be a spark, a flame, or any other form of heat.

2. Fuel: Fuel is any material that can burn, such as wood, paper, gasoline, or even certain gases.

3. Oxygen: Fire needs oxygen to sustain itself. In most cases, oxygen is present in the air.

These three elements—heat, fuel, and oxygen—must be present for a fire to exist. If any one of these elements is removed, the fire will be extinguished. Fire extinguishers work by targeting one or more of these elements, either removing them or disrupting the chemical reactions involved in combustion.

How Fire Extinguishers Work

Fire extinguishers are designed to interrupt the chemical process of combustion, effectively stopping the fire. They do this by either cooling the flames, removing oxygen, or removing the fuel that the fire needs to continue burning. The method used depends on the type of fire extinguisher and the type of fire it is designed to combat.

1. Cooling the Fire (Water and Foam Extinguishers)

One of the most common methods used to extinguish a fire is by cooling it down. This is where water fire extinguishers and foam fire extinguishers come into play. These extinguishers work by lowering the temperature of the fire and reducing the heat element of the fire triangle.

Water Fire Extinguishers: Water is an effective cooling agent because it absorbs heat quickly. When water is sprayed onto a fire, it rapidly lowers the temperature of the burning material, preventing the fire from continuing to burn. Water fire extinguishers are primarily used for Class A fires (fires involving solids such as paper, wood, and textiles).

Foam Fire Extinguishers: Foam is another excellent cooling agent that also works by forming a blanket over the fire. The foam cools the fire and helps to prevent the release of flammable vapors from the burning material. Foam extinguishers are versatile and can be used on Class A fires as well as Class B fires (fires involving flammable liquids like gasoline or oil).

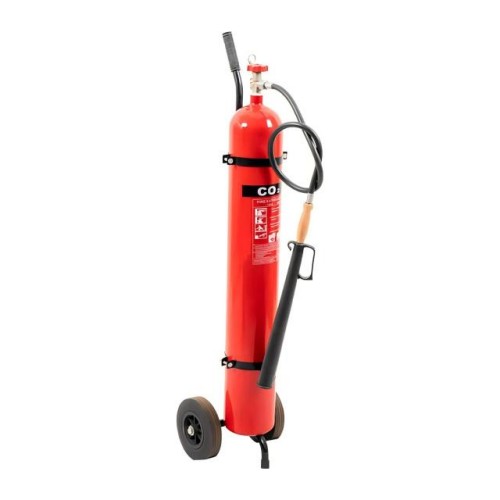

2. Removing Oxygen (CO2 Extinguishers)

Another method of extinguishing fires is by removing oxygen, which is necessary for combustion. Carbon dioxide (CO2) fire extinguishers are highly effective at doing this. When CO2 is released, it quickly displaces the oxygen in the immediate area of the fire, suffocating the flames and stopping the fire from continuing.

CO2 extinguishers are commonly used for Class B fires (flammable liquids and gases) and Class C fires (electrical fires). This is because CO2 is a non-conductive gas, making it safe to use on electrical fires without the risk of electrocution.

When CO2 is discharged from the extinguisher, it is in the form of a pressurized liquid. Upon release, the liquid rapidly expands into gas, cooling down in the process and suffocating the fire. The discharge of CO2 is also accompanied by a distinctive fog, which can help to reduce the visibility of the fire temporarily.

3. Disrupting the Chemical Reaction (Dry Powder Extinguishers)

Dry powder fire extinguishers work by interrupting the chemical reaction that fuels the fire. These extinguishers release a fine powder that coats the fuel, disrupting the chemical reactions occurring in the fire. This method is known as chemical inhibition, and it works by breaking the chain reaction that allows the fire to sustain itself.

Dry Powder Extinguishers: These extinguishers are highly effective against Class A, B, and C fires. They work on a variety of materials, including solids, flammable liquids, and electrical fires. The dry powder creates a barrier between the fuel and the oxygen, effectively suffocating the fire and stopping the combustion process.

Dry powder extinguishers are ideal for situations where fires may involve various materials, making them versatile in industrial or workplace settings where different types of flammable substances are present. However, they can leave a messy residue, so they are often best suited for outdoor or industrial use rather than household environments.

4. Smothering the Fire (Wet Chemical Extinguishers)

Wet chemical fire extinguishers are designed specifically for kitchen fires involving cooking oils or fats. These fires, classified as Class K fires, can be extremely dangerous because the high temperature of the oil can cause a fire to escalate quickly. Wet chemical extinguishers work by cooling the fire and forming a soapy foam that forms a layer over the burning oil, effectively smothering the flames and preventing re-ignition.

The wet chemical agent in these extinguishers contains a potassium-based solution that reacts with the burning oil to create a thick foam layer. This foam prevents oxygen from reaching the fire, effectively extinguishing it while also reducing the heat.

Types of Fire Extinguishers and Their Uses

Fire extinguishers are classified into different types based on the materials they are designed to extinguish. Each type of fire extinguisher uses a different extinguishing agent that is most effective for the fire it is meant to fight.

Class A Fire Extinguishers: These are used for fires involving ordinary combustibles like wood, paper, and fabric. Water and foam fire extinguishers are the most common types used for Class A fires.

Class B Fire Extinguishers: These are used for fires involving flammable liquids such as gasoline, oil, and paints. Foam and dry powder fire extinguishers are typically used for these types of fires.

Class C Fire Extinguishers: These are designed for electrical fires, which can be very dangerous because of the risk of electric shock. CO2 and dry powder fire extinguishers are best for Class C fires, as they do not conduct electricity.

Class K Fire Extinguishers: These are used for kitchen fires involving cooking oils and fats. Wet chemical fire extinguishers are the most effective for this type of fire.

Conclusion

Fire extinguishers are essential tools for preventing fires from causing widespread damage. Their effectiveness relies on the scientific principles of cooling, smothering, and chemically interrupting the combustion process. By understanding the different types of fire extinguishers and how they work, individuals and businesses can choose the appropriate extinguishing agent for their specific needs. Regular maintenance and proper training on how to use fire extinguishers are also essential for ensuring that they work when needed most.
