Fire safety remains a critical concern for commercial and industrial facilities worldwide, with fire hose reels serving as frontline defense systems against early-stage fires. These essential firefighting tools bridge the gap between portable extinguishers and full-scale sprinkler systems, offering rapid response capabilities that can prevent catastrophic damage.

Core Components and Working Mechanism

Fire hose reels comprise six essential components: reel drum, fire-rated hose (typically 20-30m length), shut-off nozzle, control valve, swing arm mechanism, and mounting bracket, working together to deliver pressurized water streams during fire emergencies.

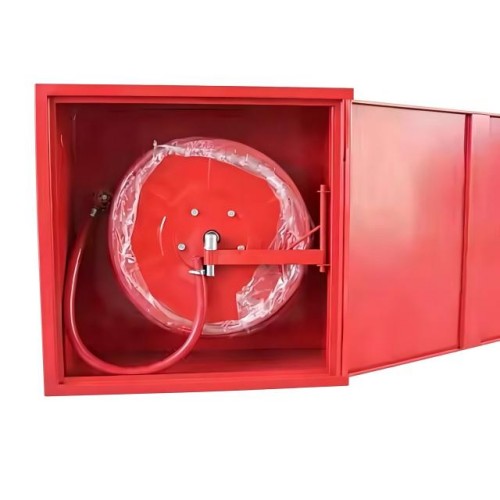

The reel drum, constructed from corrosion-resistant steel or polymer composites, houses the folded or rolled hose in a compact configuration. When deployed, the swing arm allows 180°-270° rotation for directional flexibility, while the drum's bearing system enables smooth unwinding under pressure. The hose itself meets strict fire resistance standards, with common diameters of 19mm (3/4") or 25mm (1") balancing water flow and maneuverability3,7.

Operationally, the system connects directly to building water mains (typically at 4-12 bar pressure) through a dedicated control valve. During activation, users pull the nozzle to unwind the hose, then open the valve to initiate water flow. The adjustable nozzle provides multiple spray patterns - from concentrated jets for deep penetration to fog patterns for heat absorption and vapor conversion8,9.

Key functional advantages include:

• Continuous water supply unlike limited-capacity extinguishers

• Faster deployment than connecting standpipe systems

• Lower water requirements compared to sprinkler activation

• Operator-controlled targeting for precision firefighting

Types of Fire Hose Reel Systems

Fire hose reels are categorized into manual and automatic systems, with sub-variations including fixed, swinging, and recessed models, each designed for specific building configurations and risk profiles.

Manual reels represent the most common configuration, requiring human intervention for both hose deployment and water activation. These cost-effective systems dominate commercial installations where trained personnel are typically present. Automatic reels, conversely, begin water discharge immediately upon hose extraction - an advantage in high-risk areas but requiring careful pressure regulation to prevent uncontrolled water release1,9.

Swinging reel systems provide enhanced directional flexibility through articulated arms, particularly valuable in confined spaces like corridors or mechanical rooms. Recessed models install flush with walls for aesthetic integration in hotels and retail environments, while outdoor-rated cabinets protect components in industrial settings. Specialized variations include:

Technical Specifications and Performance Standards

Fire hose reels must comply with international standards including EN 671, ISO 9001, and local building codes, governing specifications from hose burst pressure (≥24 bar) to reel rotation resistance (≤50N at 10m extension).

Material specifications dictate stainless steel or powder-coated carbon steel for structural components, with brass or corrosion-resistant alloys for valves and fittings. Hoses demonstrate UV stability and abrasion resistance, with reinforced layers maintaining integrity at working pressures up to 12 bar and temperatures from -30°C to +60°C3,7.

Performance testing includes:

1. Hydrostatic pressure tests at 1.5× working pressure

2. Flow rate verification (≥24 L/min at 4 bar)

3. Nozzle spray pattern validation

4. Durability testing (500+ deployment cycles)

Installation Guidelines and Strategic Placement

Optimal fire hose reel installation follows the 30/30 rule: located within 30 meters of potential fire risks and 30 inches above floor level, complying with NFPA 14 and local fire codes for visibility and accessibility.

High-risk areas like electrical rooms, storage facilities, and kitchen exhaust hoods warrant prioritized placement. The International Building Code mandates maximum 60m spacing between units in commercial structures, reduced to 40m for industrial occupancies with higher fire loads6,9.

Installation best practices include:

• Wall mounting on structural supports (not drywall)

• Clear signage with photoluminescent markings

• Dedicated water supply line with pressure gauge

• Access corridors maintaining 1m clearance

Maintenance Protocols and Compliance Requirements

Rigorous maintenance involves quarterly operational testing, annual pressure checks, and biannual professional inspections to ensure compliance with NFPA 25 and occupational safety regulations.

Preventive maintenance protocols should include hose inspection for cracks or bulges, valve lubrication, nozzle functionality tests, and verification of water flow rates. Digital maintenance logs now replace paper-based systems, with RFID tags enabling equipment history tracking7,10.

Common failure points requiring attention:
