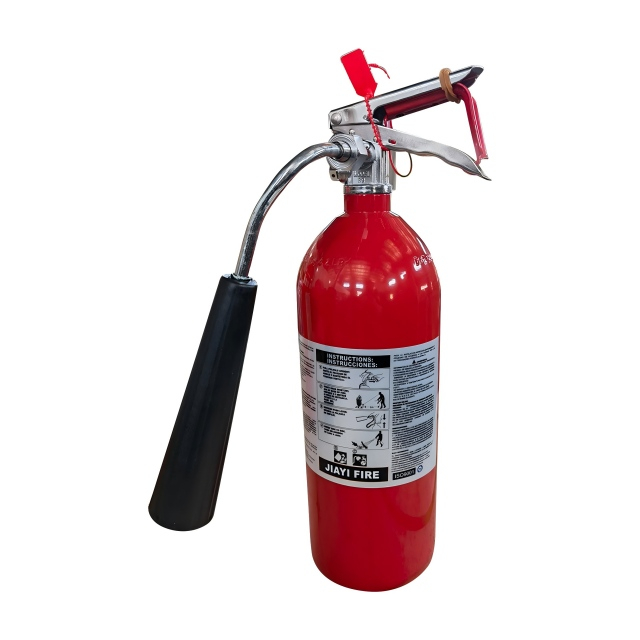

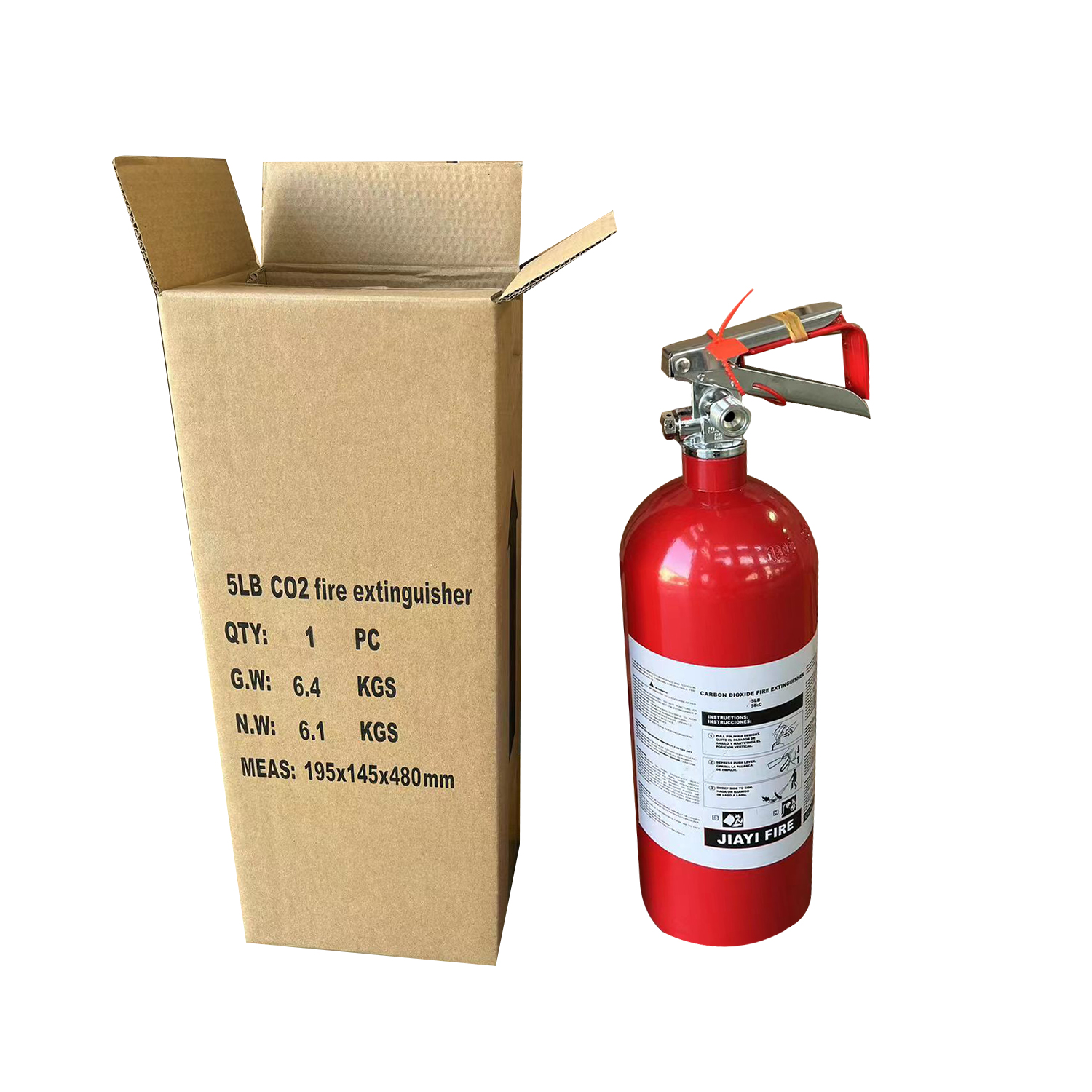

Multipurpose Fire Extinguisher
CO2 is a Clean Agent.
It is recommended to Protect Sensitive Electrical or Electronic Equipment.
Copper Valves with Chrome Plated. Handle made by Stainless Steel.
Aluminum Cylinder, Light Weight.
High Impact Extrusion Molding for Optimum Strength
Outside Epoxy Coating, Withstand Extreme Temperatures, Dirty Environments and UV Protection.
| Size & Capacity (lbs) | 5 | 10 | 15 | 20 |
| U/L Rating | 5B:C | 10B:C | 10B:C | 10B:C |
| Valve Material | Aluminum 6061 | |||
| Cylinder Diameter (mm) | 133 | 175 | 175 | 203 |
| Cylinder Depth ( mm) | 370 | 430 | 600 | 600 |
| Cylinder Volume (ml) | 3.4 | 6.8 | 10.2 | 13.5 |
| Cylinder Weight (kg) | 3.1 | 6.0 | 7.8 | 10.5 |
| Discharging Time ( second) | 10 | 10 | 15 | 20 |
| Discharging Range (m) | 1.83 - 3.65 | |||
| Working Pressure (Bar) | 310 | |||
| Working Temperature (ºC) | -30° - 60° | |||
| Application | Nozzle | Hose & Nozzle | ||
| Standard Bracket | Wall | |||
