In every industrial park, high-rise office tower, logistics warehouse, or offshore platform, the first line of manual intervention against fire is often a humble red cylinder mounted on the wall. That cylinder is the fire hose reel—an item so common that it is frequently overlooked during safety audits, yet so critical that a single malfunction can double the monetary loss of a blaze. Recent updates to ISO 14520 and NFPA 14 have once again pushed the fire hose reel into the spotlight, making it essential for facility managers, safety officers, and procurement teams to revisit the technology, the code, and the maintenance strategy behind this life-saving device.
A fire hose reel is a fixed, manually operated discharge appliance that provides a controlled, pressurized stream of water to fight incipient fires. It consists of a reel drum, a length of non-kinking hose, a shut-off nozzle, and an inlet valve connected to a reliable water supply. When the user opens the valve and pulls the hose toward the fire, water flows immediately and continuously until the valve is closed, allowing rapid cooling and suppression of Class A combustibles.
Understanding how the reel works in isolation, however, is only half the battle. The real competitive advantage for any B2B stakeholder lies in grasping the entire ecosystem: hydraulic design, flow dynamics, compliance mapping, and total cost of ownership. The sections that follow break down each element so that you can specify, source, and service hose reels with the same rigor you apply to any other business-critical asset.

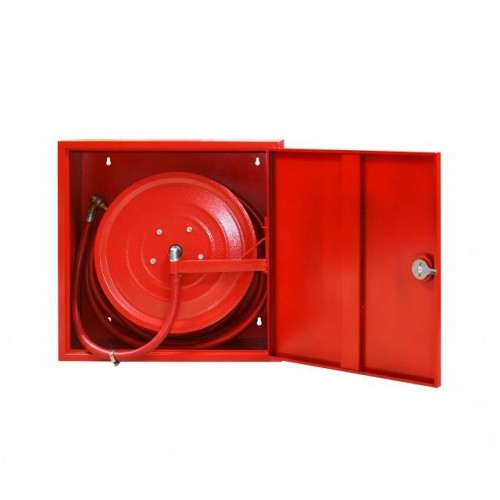

A fire hose reel is a cylindrical spool wound with high-pressure hose, permanently connected to a water supply, and fitted with a flow-control nozzle so that building occupants or fire brigades can deploy water quickly without rolling out heavy portable hoses.
The anatomy looks simple, yet every element is governed by strict tolerances. The drum** is usually 300–450 mm in diameter and made of 1.2 mm carbon steel or 2 mm stainless steel, powder-coated red for visibility. Inside, a swivel joint—often of bronze or gun-metal—prevents hose torsion while maintaining a 12-bar pressure rating. The hose itself is 19 mm or 25 mm internal diameter, 30 m long, and lined with EPDM or thermoplastic polyurethane to resist kink and mildew. Finally, the shut-off nozzle** must deliver a minimum 0.33 L/s flow at 2 bar, yet produce a 6 m horizontal throw when fully opened.
What many procurement teams miss is the inlet stop valve, which is not part of the reel package but is specified separately. A full-bore 25 mm ball-type valve with lever handle ensures that the waterway matches the hose diameter, avoiding pressure drop. Omitting this valve or substituting a smaller gate valve is the single most common cause of “weak stream” complaints during commissioning.
When the anti-tamper seal is broken and the main valve is opened, municipal or booster pump pressure forces water through the swivel into the hose; as the operator walks toward the fire, the hose unwraps off the drum under tension, and squeezing the nozzle trigger produces a straight or fog stream that can reach 8–10 m depending on pressure and nozzle setting.
Phase 1—Activation: The user swings open the glass door or acrylic cover, releasing the automatic rewind latch. A micro-switch can signal the fire panel at this point, but the water is still static.
Phase 2—Water Admission: Turning the inlet ball valve 90° introduces full line pressure. Because the hose is already charged, there is no “spool-up” delay; water is available instantly once the nozzle opens.
Phase 3—Deployment & Stream Control: As the operator advances, the hose pays out smoothly thanks to a roller guide that prevents chafing against the drum flange. The nozzle typically offers 15°–30° fog to 0° straight stream adjustment, allowing the user to trade reach for heat absorption. A 6-bar inlet pressure will generate roughly 0.5 L/s at the tip, enough to absorb 1.05 MW of heat energy using the Q = m c ΔT equation—sufficient for a 2 m high pallet stack of Class A goods.
Phase 4—Shut-down & Rewind: After the fire is controlled, releasing the trigger closes the nozzle; the operator can then close the inlet valve, open the nozzle to depressurize, and use the manual rewind handle or spring-assisted mechanism to roll the hose back flush with the drum, draining residual water through a micro-hole in the lowest segment.
Fire hose reels are grouped by mounting orientation (swing or fixed), rewind method (manual, spring, or motorized), and pressure rating (standard 12 bar or high-pressure 20 bar), with each variant optimized for occupancy class, ceiling height, and user capability.
| Type | Hose Length (m) | Flow at 2 bar (L/s) | Deployment Time (s) | Best Use Case | Approx. FOB Price (USD) |
|---|---|---|---|---|---|
| Swing Manual 19 mm | 30 | 0.33 | 15 | Small offices | 110 |
| Fixed Spring 25 mm | 30 | 0.50 | 10 | Shopping malls | 165 |
| Motorized 25 mm | 45 | 0.60 | 8 | Airports | 430 |
| High-pressure 20 bar | 30 | 0.80 | 10 | Hot work areas | 310 |
Selection logic starts with occupancy hazard. Light hazard spaces such as classrooms need only 0.33 L/s, whereas extra hazard groups like turbine halls require at least 0.50 L/s. Next, consider user fatigue: a 30 m hose filled with water weighs 18 kg; if the workforce includes smaller statured staff, a spring rewind removes the physical burden of re-spooling. Finally, **ceiling height** dictates nozzle reach; a 6 m throw may be inadequate for 12 m rack aisles, necessitating a 25 mm high-flow reel or supplemental overhead sprinklers.
Compliance is anchored on three pillars: EN 671-1 for Europe, BS 5274 for the UK, and NFPA 14 for North America, all mandating 30 m hose length, 0.33 L/s minimum flow, and 6-monthly inspections, while Australia’s AS 1221 adds a 4-bar hydrostatic strength test and color-coded identifier discs.
A pragmatic checklist for multinational facilities can be distilled into a single table:
Hose diameter tolerance: +0.5 mm / –0 mm (EN 671-1 clause 4.2)
Minimum inlet pressure: 2 bar at the most hydraulically remote reel (NFPA 14-7.3.2.3)
Maximum activation force: 178 N to open the valve (AS 1221-5.6)
Marking language: Bilingual if local dialect differs from English (ISO 3864)
Hydrostatic test: 10 bar for 2 minutes without rupture or permanent deformation
Failure to satisfy even one bullet can invalidate your insurance premium calculation. After a 2023 warehouse fire in Rotterdam, the underwriter reduced the claim by 18 % because the nearest reel was 35 m away—5 m beyond the travel distance stipulated in EN 671-1. The lesson: treat compliance distances as hard limits, not “nice-to-have” guidelines.
Install reels so that the nozzle can reach every point of the floor with a 6 m spray throw, keeping the travel distance from any location to the reel within 30 m for light hazard and 23 m for ordinary hazard, while mounting the drum centerline 1.2 m above finished floor to minimize torque on the user’s wrist.
Begin with a hydraulic survey. Use the Hazen-Williams formula to predict pressure loss: for a 30 m 25 mm hose flowing 0.5 L/s, friction loss is 0.18 bar, but add 0.35 bar for elevation if the reel is on the fourth floor. If the city main can only supply 1.8 bar at peak hour, you must either shorten the hose to 20 m or install a booster pump. Next, perform a vector coverage analysis** in CAD: draw 6 m radius circles around each proposed reel location; any gap larger than 1 m² fails the “total coverage” rule. Finally, coordinate with egress routes**—a reel must never obstruct door swing or reduce exit width below code minimums.
Every six months, a competent person must fully deploy the hose, verify 0.33 L/s flow for 60 s, inspect for mildew and coupling leaks, record inlet pressure, and then rewind correctly to prevent flat spots; data is logged into a cloud CMMS tagged with the reel’s QR code to satisfy audit trails.
The **digital angle** is gaining traction. NFC tags embedded on the drum flange allow a technician to tap a phone and auto-populate pressure readings, photos of perished hose, and GPS coordinates. Over 36 months, a 500-reel portfolio generates 3 000 data points—enough for machine-learning algorithms to predict which 5 % of reels will fail next quarter, shifting the paradigm from reactive “fix-after-fail” to predictive “replace-before-fail.” Early adopters report a 14 % drop in emergency call-outs and a 9 % insurance rebate.
Over a 15-year lifecycle, a mid-tier 25 mm spring rewind reel will cost USD 165 upfront, USD 9 annually in inspection labor, USD 22 in hose replacement at year 8, and USD 3 in regulatory paperwork, totaling USD 320—far below the USD 12 000 average loss when a small trash-bin fire escalates because no functional reel was within reach.
Capital expense is only 52 % of TCO; the remainder is operational. Using a cloud-based inspection platform adds USD 1 per reel per year but saves USD 4 in manual paperwork. High-pressure stainless models cost 2× upfront yet last 25 years instead of 15, driving the equivalent annual cost from USD 21 to USD 18. When procurement negotiates frame agreements, insist on **spare-nozzle kits** bundled at 2 % of reel price; a single clogged nozzle discovered at 2 a.m. can otherwise cost USD 450 in emergency technician fees.
Low flow is 80 % of field complaints; root causes in descending order are partially closed stop valve, kinked hose trapped behind the drum, mineral buildup in the swivel, and—rarely—city main pressure drop, each diagnosed by attaching a calibrated gauge at the inlet and comparing static vs. residual pressure.
If static pressure** reads 4 bar but residual drops to 1.2 bar the moment the nozzle opens, the issue is upstream—possibly a worn jockey pump. Conversely, if both pressures hold steady yet flow at the tip is still sub-par, disconnect the hose at the swivel; a quick bucket test will reveal whether obstruction is in the hose or the nozzle. Carry a bore-scope** to inspect the drum interior—rodents occasionally nest inside, chewing the hose and creating pin-hole leaks that manifest as “mysterious” pressure loss.
The next generation integrates IoT pressure transducers, LoRaWAN radios, and lithium batteries to transmit daily “heartbeat” pressure readings and instant alerts when the valve is opened, enabling facility teams to dispatch security or fire brigade even before an alarm pull-station is activated.
Pilot projects in Singapore’s biotech parks show a 40 % reduction in fire department response time because the reel’s message includes GPS coordinates and floor plan QR code. Battery life now exceeds five years thanks to ultra-low-power chipsets, and the incremental cost is projected to fall below USD 35 per reel by 2026. Early integration with **BIM models** allows digital twins to flash red when a reel is blocked by temporary scaffolding—an innovation that insurers are already translating into premium discounts of 3–5 %.
A fire hose reel is far more than a red coil on the wall; it is a precision-engineered component of a life-safety network whose reliability hinges on correct specification, code-compliant installation, and disciplined maintenance. By understanding the hydraulic physics, the global standards, and the emerging digital ecosystem, B2B decision-makers can convert a mundane compliance spend into a strategic risk-mitigation asset that pays for itself many times over the first time a flame is knocked down at the incipient stage.
