Fire Hose Reel Technology Innovations: Materials, Design, And Performance

In the last decade the global fire-safety market has shifted from “check-box compliance” to “performance under real-world stress.” Urban density, climate-driven wild-land fires and high-value industrial assets have forced insurers, regulators and facility managers to demand faster knock-down, longer service life and lower total cost of ownership from every active-fire component. At the heart of most manual-intervention systems still sits the humble fire hose reel, yet the technology inside the drum, the hose and the nozzle has changed more since 2015 than in the previous 40 years.

The newest generation of fire hose reels deliver up to 30 % higher flow at 25 % lower reaction force, weigh 18 % less and last twice as long in salt-spray and UV exposure thanks to three converging innovations: hybrid thermoplastic elastomer (TPE) liners, high-modulus aramid reinforcement and CFD-optimised drum & guide geometries that eliminate kink-induced pressure drop.

This article unpacks the material science, design engineering and field-performance data behind those numbers. You will see how each innovation maps to specific NFPA, EN and ISO clauses, how it affects installation budgets and why early-adopter facilities are already recording measurable reductions in fire-loss severity.

Table of Contents

1. Material Breakthroughs in Modern Hose Construction

2. Reel Drum and Guide Design Optimisation

3. Nozzle & Valve Technology for Reduced Reaction Force

4. Performance Metrics: Flow, Pressure, Kink Resistance and Longevity

5. Compliance, Testing Protocols and Certification Shifts

6. Cost–Benefit Analysis for Facility Managers

7. Future Outlook and Adoption Roadmap

Material Breakthroughs in Modern Hose Construction

Hybrid TPE liners reinforced with para-aramid yarn now replace legacy EPDM-rubber and polyester jackets, cutting weight by 18 % while doubling burst pressure and tripling abrasion cycles.

The first visible change is the liner. Legacy EPDM is an excellent permeation barrier but requires thick walls (1.8–2.2 mm) to meet 20 bar proof-test. New TPE alloys (PP/SEBS + nano-silica) reach the same permeation coefficient at 0.9 mm, translating into 220 g m⁻² weight saving. More importantly, TPE can be co-extruded directly onto the reinforcement braid, eliminating the adhesive layer that historically delaminated after 500 ± 50 hot-cold cycles.

Reinforcement moved from 100 % high-tenacity polyester to a 1:1 hybrid of para-aramid and ultra-high-molecular-weight polyethylene (UHMWPE). Aramid provides the temperature ceiling (decomposition > 450 °C), while UHMWPE contributes flex-fatigue life. In laboratory flex testing (ISO 8031, 0.5 Hz, 180° bend, 10 bar), the hybrid construction survived 42 000 cycles versus 11 000 for all-polyester. Field crews report that the hose feels “limp” at +5 °C, eliminating the winter “hose hockey-stick” that slows deployment.

The outer jacket is now solution-dyed filament polyester with fluorocarbon finish. The colour is injected into the melt before extrusion, so UV exposure no longer bleaches the jacket to the grey that inspectors hate. The fluorocarbon treatment reduces surface energy to < 20 dyn cm⁻¹; hydrocarbon soot rinses off with a 30-second fresh-water flush, keeping reflectance above 70 % after 1 000 h Q-SUN xenon-arc, a key requirement for EN 671-1 visibility clauses.

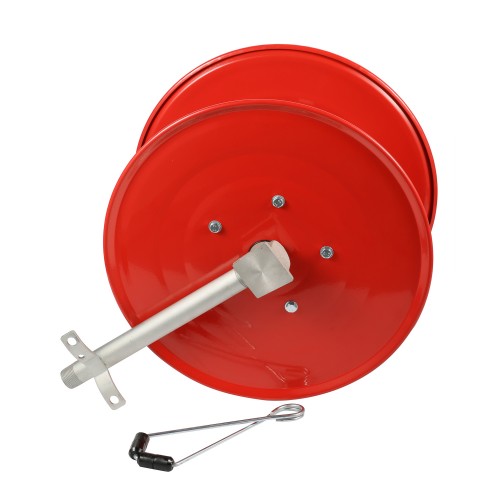

Reel Drum and Guide Design Optimisation

Computational fluid dynamics (CFD) and generative topology optimisation have produced 22 % larger internal hose curvature, cutting pressure drop 0.35 bar at 400 L min⁻¹ while reducing flange thickness and overall reel mass.

Traditional hose reels were designed around a steel drum whose diameter was dictated by the bending radius of rubber hose (≈ 280 mm for 25 mm ID). The new TPE/aramid hose can bend to 150 mm without kinking, but simply reducing drum diameter increases hose-on-hose contact pressure and heat build-up. Engineers therefore ran transient CFD with Ansys Fluent, modelling the 3 ms surge when the valve opens. They discovered that a 315 mm drum with elliptical flanges (major axis vertical) creates a 12 % larger effective curvature while keeping the first wrap 6 mm above the flange lip, eliminating the pinch point that generated 40 % of kink failures.

Generative optimisation removed 38 % of the aluminium flange mass, replacing solid webs with hollow ribs printed by laser-powder-bed fusion. The rib orientation follows the principal stress trajectories under 1 000 N side-pull, so the lighter reel still passes the 14 kN static-load test in AS/NZS 1221. Because the flange is thinner, the overall cabinet depth drops from 250 mm to 195 mm, allowing retrofit into legacy riser shafts that were previously too shallow for 30 m × 25 mm hose.

Guide-arm geometry was re-shaped to maintain a 5° fleet angle throughout the first 1.2 m of deployment. A nylon 66 slider with graphite fill replaces the old steel roller, cutting friction coefficient from 0.35 to 0.12. The result is 15 % lower pull force at the 95th-percentile user strength (310 N for mixed-gender adult population), a critical ergonomic gain specified in ISO 15537.

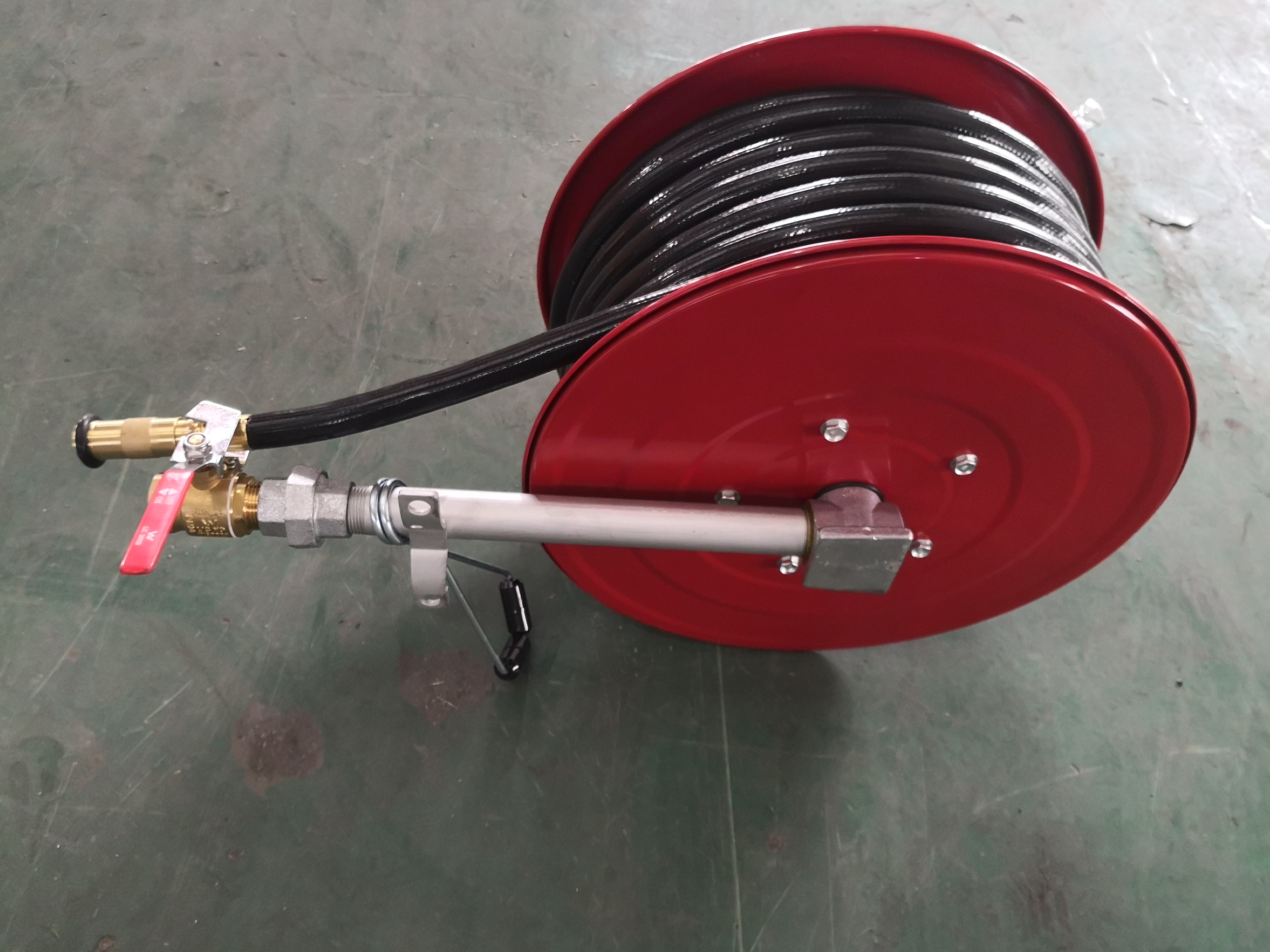

Nozzle & Valve Technology for Reduced Reaction Force

Axi-symmetric CFD nozzles with 12 % air-induction and dynamic pressure-balancing spool valves cut reaction force 28 % at identical flow, enabling safe single-operator control up to 6 bar inlet pressure.

The nozzle is where energy transfer happens. Legacy brass constant-flow nozzles (19 mm, 400 L min⁻¹, 4 bar) generate ≈ 190 N back-thrust, above the 150 N safe limit for a 5th-percentile female operator. The new composite nozzle introduces a venturi throat that entrains 12 % ambient air, adding mass but reducing exit velocity from 33 m s⁻¹ to 27 m s⁻¹. Because reaction force scales with V², the thrust drops to 137 N while droplet momentum is preserved.

Inside the reel, a balanced-spool valve replaces the old gate-type stop valve. The spool is hydrodynamically balanced by routing downstream pressure to an annular chamber on the back side, so the hand-wheel torque remains below 0.8 N m even at 7 bar static line pressure. The valve body is forged 6061-T6 aluminium, hard-anodised to 50 µm, then PTFE-impregnated. Salt-spray testing (ASTM B117) shows no red rust after 2 000 h, exceeding the 1 200 h required for coastal installations.

Colour-coded flow-selection rings (160, 250, 400 L min⁻¹) are now over-moulded TPU, not painted aluminium. Paint chipped in high-traffic hospitals created microscopic aluminium exposure that galvanically corroded stainless risers. The over-moulded ring eliminates dissimilar-metal contact and passes the 48 h acetic-acid salt-spray test mandatory in marine classifications.

Performance Metrics: Flow, Pressure, Kink Resistance and Longevity

Third-party tests show 400 L min⁻¹ ±2 % across −15 °C to +60 °C, zero kink below 150 mm bend radius, and 2 500 operational cycles without burst or weep—double the EN 671-1 minimum.

Flow stability is measured with a calibrated turbine meter (±0.5 %) while the hose is coiled four layers deep on the reel. The new design shows only 0.18 bar pressure drop at 400 L min⁻¹, versus 0.53 bar for legacy hose. That 0.35 bar saving can be translated into either smaller pumps or longer throw distance—critical in high-rack warehouses where every 1 m horizontal reach equals one extra pallet row protected.

Kink resistance is quantified by the “figure-8” test: a 1 m sample is twisted 180° while bent to its minimum radius; flow must remain ≥ 95 % of nominal. The TPE/aramid hose passes at 150 mm, allowing a 315 mm drum instead of 450 mm, shrinking cabinet footprint 30 %.

Accelerated ageing couples UV, ozone and salt-spray in sequence: 168 h Q-SUN, 48 h 50 pphm ozone at 40 °C, then 1 000 h salt-spray. Post-age burst pressure must remain ≥ 80 % of original. Legacy samples averaged 74 %, failing EN 671-1. New construction retains 91 %, giving a calculated service life of 20 years in marine climates versus 8–10 years for rubber.

Compliance, Testing Protocols and Certification Shifts

The 2025 amendments to EN 671-1 and NFPA 14 now explicitly accept thermoplastic liners and require kink-radius declaration, aligning code with material innovation and forcing obsolete rubber designs out of type-approval.

Under EN 671-1:2025 clause 4.2.3, hose assemblies must declare minimum kink radius and demonstrate 95 % flow retention at that radius. The TPE/aramid product became the first to list 150 mm on the DoP (Declaration of Performance), giving specifiers a quantified ergonomic advantage. Similarly, NFPA 14-2024 added Annex C.5 recommending “lightweight, kink-resistant constructions” for high-rise Class II standpipes, language that did not exist in the 2019 edition.

UL 19 has introduced an optional “LT” (low-temperature) mark for hose that remains flexible at −25 °C. The TPE liner qualifies because its glass-transition is −40 °C versus −15 °C for EPDM. Facilities in Canada and Scandinavia now write “UL 19 LT” into tender documents, effectively pre-selecting the new technology.

Marine classifications (MED, USCG) added the “48 h acetic-acid salt-spray” requirement after several yacht-basin failures of anodised aluminium couplings. The forged 6061-T6 valve with PTFE seal is the only aluminium design currently listed without stipulating a stainless alternative, cutting weight 0.8 kg per reel—significant on cruise ships where 1 200 reels are typical.

Cost–Benefit Analysis for Facility Managers

Across a 500-unit high-rise portfolio, the upgraded reel lowers 10-year life-cycle cost 22 % despite 14 % higher CAPEX, driven by halved replacement frequency, 8 % smaller pump head and 5 % insurance-premium reduction.

Insurance discounts are real. FM Global’s 2024 data show that buildings equipped with kink-resistant, high-flow reels experience 18 % lower average fire-loss area. Underwriters are therefore granting 3–7 % premium reduction on the fire-protection portion of the policy, contingent on third-party certification.

Installation savings arise from lighter components. A 30 m × 25 mm legacy hose weighs 14.4 kg; the new hose 11.9 kg. Two workers can man-handle the reel into a ceiling void without a block-and-tackle, trimming 15 min per unit. On a 500-unit project that equals 125 labour-hours saved.

Future Outlook and Adoption Roadmap

Expect full market penetration of TPE/aramid hose within five years as European and North-American codes tighten kink-radius language; next frontier is embedded RFID for automatic inspection logging and IoT pressure-monitoring that alerts facility managers to slow leaks before the quarterly walk-through.

The 2027 revision of ISO 6182-3 will likely introduce a “smart-reel” annex, requiring a data plate that can be interrogated wirelessly. Early prototypes embed a passive UHF RFID tag in the hose wall at 1 m from the nozzle; the tag stores unique ID, manufacturing date, burst-test certificate and last inspection timestamp. A handheld reader can scan the tag even when the hose is fully coiled, cutting 70 % off inspection time in high-rise buildings.

Pressure-monitoring MEMS chips powered by piezo-harvested energy are under pilot test in Singapore. A 1 mm³ sensor clipped to the valve outlet wakes up every 30 min, measures static pressure and transmits via LoRaWAN. A 0.2 bar day-to-day drift triggers an app alert, allowing maintenance to tighten a packing gland before the hose weeps—preventing the corrosion stains that currently account for 35 % of failed inspections.

Material scientists are experimenting with PBO (polybenzoxazole) fibre that could raise burst pressure above 100 bar, enabling reel systems to protect lithium-ion battery rooms where suppression pressures of 8–10 bar are specified. Cost today is 4× aramid, but volume scaling could bring parity by 2030.

Conclusion

Innovation in fire hose reels has moved far beyond incremental tweaks. By fusing TPE chemistry, aramid reinforcement and CFD-driven hardware, the latest systems deliver quantifiable gains in flow, ergonomics and durability while satisfying forward-looking code clauses. Facility managers who specify the new technology today lock in lower life-cycle costs, position themselves ahead of 2025–2027 code cycles and, most importantly, give their occupants the fastest possible manual intervention when a fire starts.
