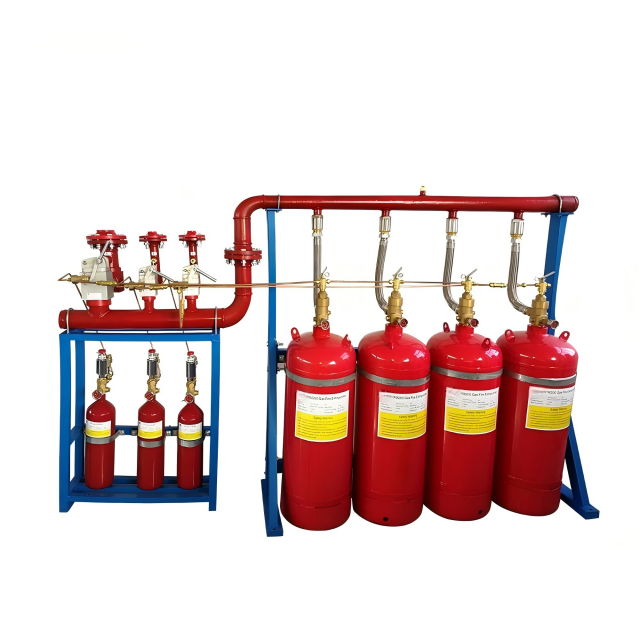

Automatic Control HFC-227ea/FM200 Fire Suppression System

Automatic Control HFC-227ea/FM200 Fire Suppression System


Availability:

Quantity:



Inquire

Ensure fire safety with this advanced suppression system. Utilizing HFC-227ea/FM200, it swiftly extinguishes fires in enclosed spaces. Easy to install and highly effective for protecting valuable assets. Ideal for commercial and industrial applications.

Model:
JY-FM200
Brand:
Jiayi Fire

FM200 Gas Fire Suppression System

Product Description

The Automatic Control HFC-227ea/FM200 Fire Suppression System is a cutting-edge solution designed to protect your valuable assets from fire hazards. This advanced system utilizes state-of-the-art technology to detect and suppress fires swiftly and effectively, providing you with peace of mind and ensuring the safety of your property. Trust in the reliability and efficiency of the Automatic Control HFC-227ea/FM200 Fire Suppression System to safeguard your business and assets.

FM200 (Heptafluoropropane, HFC-227ea) automatic gas fire extinguishing system is one of the modern intelligent automatic fire fighting system, which no damage to the protected items, leaving no residue after the fire, completely without interrupting the daily work of the protected area. Now the FM200 gas system be widely used in electrical room, data room, service room, IT room, archive room, etc.

Parameters:
Filling pressure	4.2 MPa
Extinguishing agent filling density	≤950kg/m3
System Power Supply	AC220V/DC24V/1A
Extinguishing agent release time	≤10s
Valve drive air pressure	6.0±1.0 MPa(20℃)
System working environment temperature	-10℃～55℃
System protection limits area	The largest single area 800m²; Volume : the largest single area 3600m ³
System start-up mode	Automatic system startup, electrical manual, mechanical emergency manual.
Storage bottle volume	40L, 70L, 90L, 120L,150L, 180L
