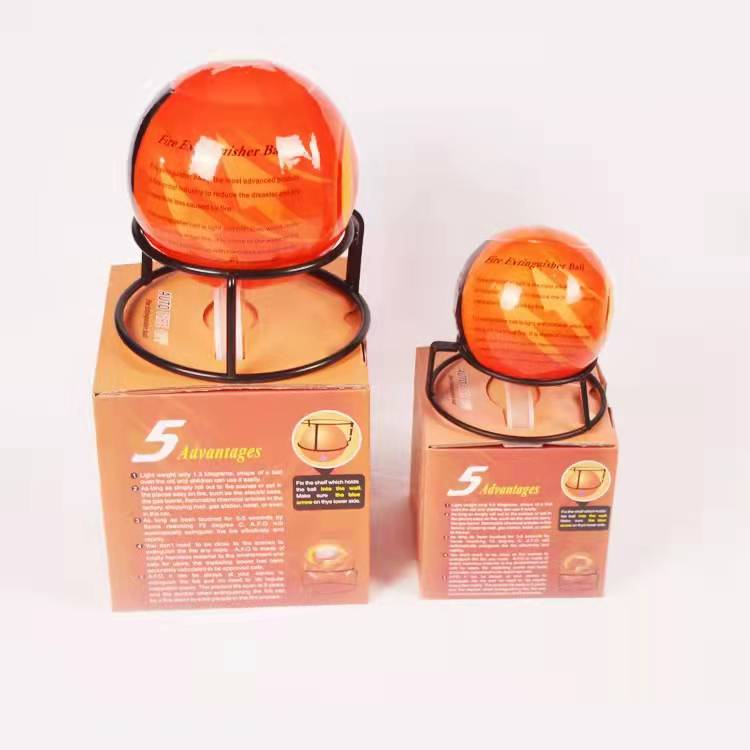

1.3kg Automatic Fire Extinguisher Ball, Easy Activation

1.3kg Automatic Fire Extinguisher Ball, Easy Activation


Availability:

Quantity:



Inquire

Model:
JY- 1300B
Brand:
Jiayi Fire
Code:
381300

Fire Extinguisher Ball Fire Extinguisher Ball For Fire Safety Mini Fire Extinguisher Ball For Fire Safety Fire Extinguisher Ball For Marine Handheld Fire Extinguisher Ball Handheld Portable Fire Extinguisher Ball Portable Fire Extinguisher Ball automatic fire extinguisher ball Home safety fire extinguisher ball Industrial fire extinguisher ball

Product Description

Fire Extinguishing Ball, your reliable guardian for fire safety. It adopts an advanced temperature-sensingself-activatingdual-fuse design. When the ambient temperature reaches 175±15℃, it can quickly activate automatically. In case of open flames oremergency manual throwing, it can also be instantly activated within 1-3 seconds, gaining crucial time for initial fire fighting.

The shell of the fire extinguishing ball is made of sturdy flame-retardant foam, eliminating the hidden danger of secondary fires.It contains 90% national standard ABC dry powder. When the fuse is ignited, the driving medium is instantly activated, the shell breaks, and the dry powder is sprayed and diffused to form a total flooding fire-extinguishing state, which efficiently extinguishes fires through the dual effects of physical coverage and chemical inhibition.

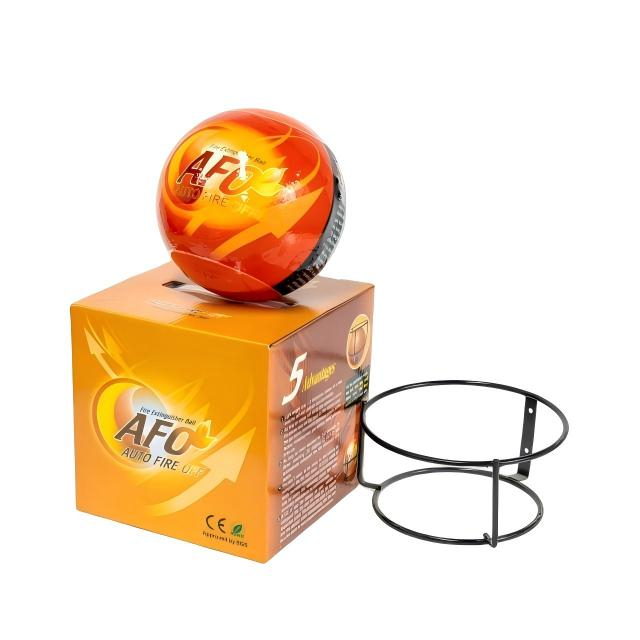

The color box is packaged in a 3-layerK5 sturdy colored carton, which is lightweight, easy to store, strong and durable.

Fire Extinguishing Ball, with bothreliability and safety, is your powerful assistant in dealing with fire risks.

Product size:	φ150mm	Dry powder release time after starting the initiator:	≤3s
Fire extinguishing agent filling capacity:	1.2kg	Main extinguishing agents	ABC dry powder(ABC-NH4H2PO4(75%)+(NH4)2SO4(15%)
Protection space:	3.5m³	Starting mode:	Automatic start / Temperature - sensing start / Manual throwing start
The alarm is sounding：	≈120dB	Operating temperature range:	-40℃ ~ +90℃
Type of fire:	A/B/C/E/F	Validity:	5 years,No need for maintenance

INSTALLATION GUIDE

Electrical Enclosures:

1. Please turn off the power before installation.
2. Place the fire extinguisher ball 15-30 cm above the high-risk points inside the enclosure.
3. For control panels or enclosures where internal installation is not possible, place the ball at least 30 cm away from the panel to achieve the best coverage.

Storage Rooms and Warehouses:

1. Suspend the fire extinguisher ball 60-80 cm above flammable areas (such as near combustible materials or equipment).
2. Depending on the size of the room, ensure proper placement to maximize coverage.

Selecting the Right Model:

Choose the appropriate size and quantity of Fire Extinguishing Balls according to the application area. Multiple fire extinguishing balls can be installed simultaneously to enhance the protection effect.

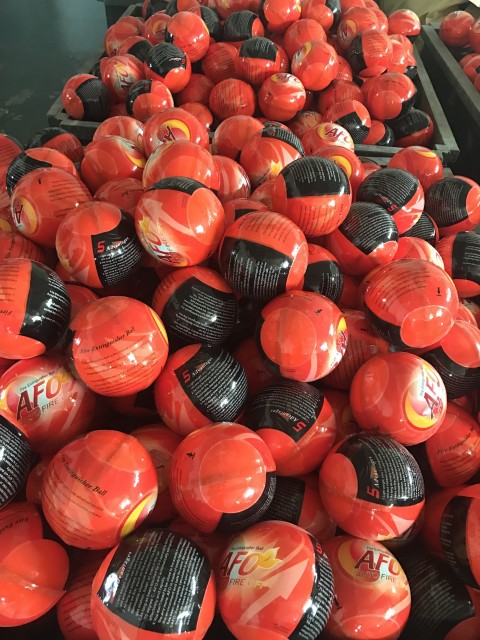

微信图片_20260104162011_1533_117
